Weber Spirit Grill Replacement Parts: 210, 220, 310, 320 and 330 (E/S)

You have come to the right place to find replacement parts for your Weber Spirit grill.  We have the parts list for the two burner Spirit grills (210 and 220) and all of the three burner grills (310, 320 and 330).

Keep scrolling and you will find exactly the right part to buy for your grill!

Weber Spirit Grill Parts
Weber Spirit Grill Parts

Weber Spirit E/S 310, 320 and 330 Parts (Front Mounted Burner Controls)

These parts are for the three burner Weber 300 series with FRONT mounted burner knobs.  The 300 series includes the 310, 320 and 330 grills. Production of this model of grill began in 2013 and continued through 2017.

  • 310: Basic three burner grill
  • 320: Three burner grill with a side burner
  • 330: Three burner grill with a side burner and a Sear Station

The Spirit 300 series has “E” versions (enameled steel) and “S” versions (stainless steel).

The replacement parts for the primary components on all of these grills are the exact same.

Spirit e 310 2017
2013-2017 Spirit 310

Flavorizer Bars

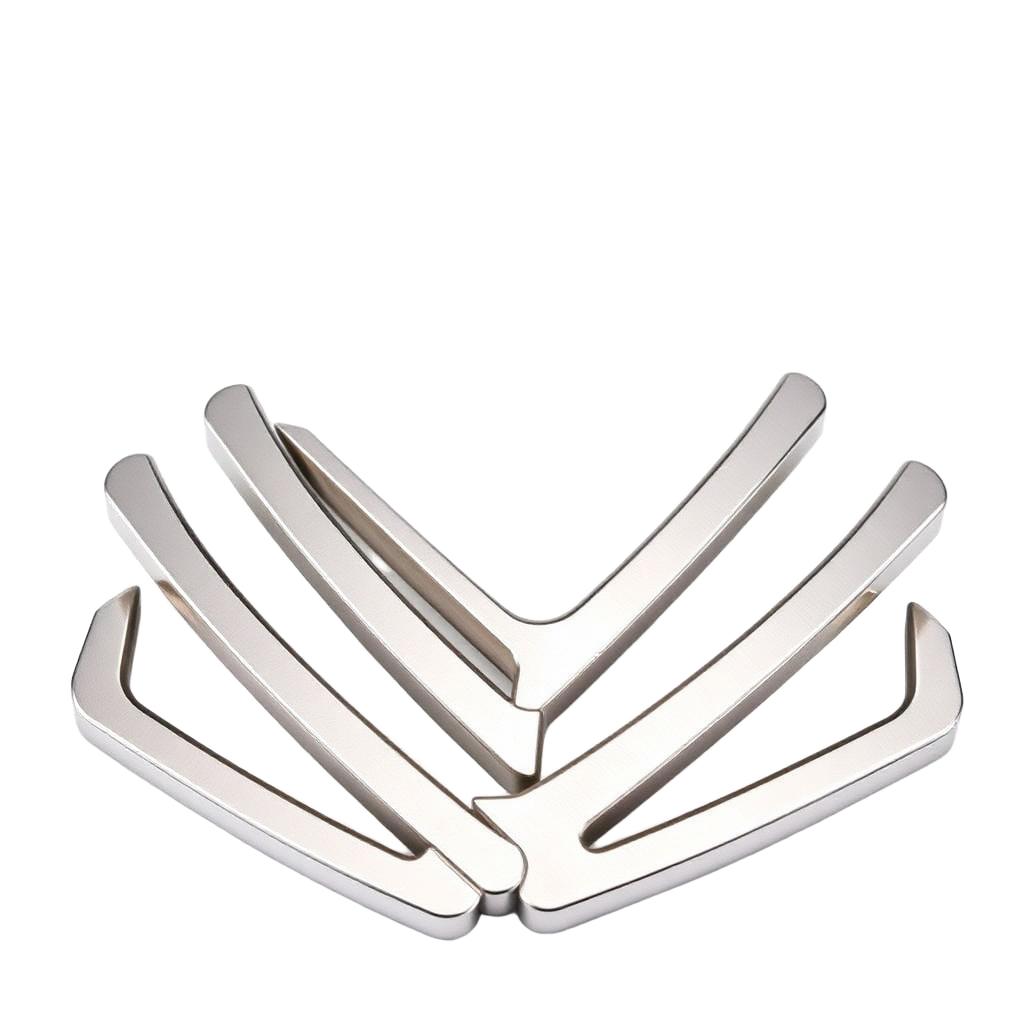

The Flavorizer bars listed below are all the same size and will fit in any Spirit 310, 320 or 330 with Front mounted control knobs. The ones from Weber are made of porcelain enameled steel and will last 2-3 years.  The ones from River’s Edge are made of 16 gauge 430 stainless steel and should last about 10 years.  The products from the other two companies are made from thinner stainless steel and should last about 5 years.


Grill Grates

There are three types of grates available for the Spirit 300 series: Porcelain enameled cast iron, porcelain enameled steel and stainless steel.  Of the three choices the stainless steel grate is my favorite.  The stainless grate gives better grill marks and is easier to clean.  The grates come in two sections and measure about 17.5 x 11.9 inches.  All of the grate options below will fit in any Spirit 310, 320 or 330 grill with FRONT mounted burner controls.


Grease Management

The grease management system for these grills consists of a grease tray, catch pan kit and aluminum drip trays.  Make sure you also get a degreasing spray to get the grill really clean.


Common Accessories

There are a couple of great accessories that you might want to look into for your Spirit.  The rotisserie, griddle and cover are all excellent additions that will make your grill nicer.


Igniters and Burners

This is where there are differences in the parts between the Spirit 310, 320 and 330 grills.

The ignition kit for the 310 has a SINGLE lead that lights the primary burners.  The ignition kit for the 320 and 330 have DUAL leads, one for the primary burners and one for the side burner.  You should be able to see the difference in the pictures below.

The burner tube kits for the 310 and 320 are identical with three primary burners.  The burner tube kit for the 330 is different as it has the three primary burners and a Sear Station burner.  You should be able to see the difference in the pictures below.


Weber Spirit E/S 310 and 320 Parts (SIDE Mounted Burner Controls)

The three burner Weber Spirit grill with SIDE mounted burner controls were made between 2007 and 2012.

Weber Spirit 310 Side
Weber Spirit 310 with Side Mounted Burners

The 310 was a basic three burner grill while the 320 was a three burner grill with a side burner.  Parts between the two grills are completely interchangeable.

Flavorizer Bars

Weber made two versions of the Flavorizer bars for this grill.  Part Number Weber 7536 are Flavorizer bars made from porcelain enameled steel while Part Number 7537 are Flavorizer bars made from stainless steel.  The porecelain bars will last 2-3 years while the stainless steel bars will last 5 years.

The bars made by River’s Edge are thicker stainless steel that the ones made by Weber and will last 7-10 years.


Grill Grates

There are three types of grates available for the Spirit 300 series.

  • Weber Part Number 7525 is a porcelain enameled steel grate.
  • Weber Part Number 7538 is a porcelain enameled cast iron grate.
  • Weber Part Number 7639 is a stainless steel rod grate.

Of the three choices the stainless steel grate is my favorite.  The stainless grate gives better grill marks and is easier to clean.  The grates come in two sections and measure about 17.5 x 11.9 inches.  All of the grate options below will fit in any Spirit 310 or 320 grill with SIDE mounted burner controls.


Burner Tubes and Ignition Kits

The correct burner tubes for these grills is Weber Part Number 7508 and a link is provided below.

The ignition kits are a little trickier.  In 2007 these grills came with a “snap style” piezo ignition If your igniter button looks like the picture below then you have a piezo ignition.

Piezeo for Spirit

After 2007 these grills came with an electronic ignition. If your igniter button looks like the picture below then you need the Electronic Battery Igniter.

Electronic for Spirit

I have not been able to find a source for the igniter that lit the side burner on the 320 grills of this time period.


Weber Spirit E 210 and 220 Parts (Front Mounted Burner Controls)

These parts are for the two burner Weber 200 series which were produced from 2013 to 2017.  The 200 series includes the 210 and  220 grills with the difference between them being that the Weber Spirit 220 has a side burner.

The Spirit 200 series has “E” versions (enameled steel) and “S” versions (stainless steel).  Replacement parts between the E and S Weber Spirit grills are interchangeable.

Weber spirit 210 front
Weber Spirit E210 With Front Mounted Burners

The key parts that most people will need are going to be the Flavorizer bars (Part Weber 7635), grill grates (Part Weber 7637), ignition kit (Part Weber 69850) and burner tubes (Part Weber 69785).


If you want a stainless steel grate for your Spirit 210 or 220 with front mounted burner controls then here is a nice aftermarket option.

Weber Spirit E 210 Parts (Side Mounted Burner Controls)

The Weber Spirit 210 grills with side mounted burner controls were manufactured from 2007-2012.  There were no Spirit 220 grills manufactured in this time frame.

The key parts that most people will need are going to be the Flavorizer bars (Part Weber 7534), grill grates (Part Weber 7522), ignition kit (Part Weber 7510) and burner tubes (Part Weber 7507).


If you want a stainless steel grate for your Spirit 210 with side mounted burner controls then here is a nice aftermarket option.

Weber Spirit 500 and 700 Parts

The Weber Spirit 500 and 700 grills were made from 1995 to 1998.  These are great grills and many of the basic parts (Flavorizer bars, burner tubes, grill grates, iginiter) are still readily available.

One of the key parts for this grill, a replacement hose and regulator, are no longer available.  There is a video at the end of this post that shows how you can easily convert your Spirit 500 or 700 to accept the new style hose and regulator that is available.

With grills this old please make sure there is no significant frame damage from corrosion before you spend a lot of money on replacement parts.

There were three versions of the Weber Spirit 500 (500, 520, 530) that were functionally equivalent.  The only differences between these three grills are cosmetic.

Porcelain Enameled Flavorizer Bars

Stainless Steel Cooking Grate

Stainless Steel Burner Tube Set

Igniter Kit

Small Aluminum Drip Pans

Grill Cover

Weber Spirit 700 Parts

The Weber Spirit 700 is a nice three burner grill but I never understood what market it was meant to serve as it competed directly with the three burner Genesis grills.

If you have one of these classic grills then here are the Weber Spirit grill parts you need to get it running like new.

Porcelain Enameled Flavorizer Bars

Stainless Steel Burner Tube Set

Porcelain Enameled Grates

Catch Pan and Holder

Igniter Kit

Aluminum Drip Pans

Again, the original hose and regulator kit that came with the Spirit 500 and 700 grills is no longer manufactured.  This video shows how to easily convert your Spirit 500 or 700 to accept that new style of hose and regulator.

Parts for Spirit II Grills

The Spirit II grills were introduced in 2018 and have a ten year warranty for all components.  Do not buy any replacement parts for these grills but do call Weber directly and have them honor the warranty.

Related Posts

Weber Genesis Parts

Weber Summit Parts

Weber Q Parts

Weber Charcoal Grill Parts



7 thoughts on “Weber Spirit Grill Replacement Parts: 210, 220, 310, 320 and 330 (E/S)”

  1. Your webpage about Weber grills is awesome! I have the side-mounted control version of a Spirit E-120. I have struggled searching on eBay for aftermarket parts because of the different generations of each model. The only question you didn’t clear up: where can I get new burners for this model?

    Reply
    • Matthew,

      Glad you found the site useful!

      I have not seen any burners for sale for this model. I suspect this is because Weber is giving them away 🙂

      The burner tubes have a 10 year warranty. Weber started selling this line of Spirit grills in 2007 so the burner tubes on all of them are still under warranty.

      If you need new burner tubes give Weber a call and have the serial number of your grill handy. They should be willing to send you some for free!

      Reply
  2. David,
    Some great info here about the older Weber grills. Thanks for taking the time to post it all

    I do have a correction though.The Weber 700 three burner grill was made till at least 1999 as I bought mine new in March of 1999 as I own that year (Weber code EE), as stated on the owners manual as well as the grill itself.
    Its been a fantastic grill over the last 17 years and most replacement parts are readily available. Over the years I’ve replaced the burners, flavorizer bars, and grates with Stainless and the grill preforms like new, this is a testament to the quality to the quality that Weber used to have.

    Jeffrey Caban

    Reply
    • Thank you for the correction , Jeffery! Trying to get the history exactly right on these grills has been tricky. I appreciate the input and knowledge!

      Reply
  3. Thank you, Thank you for having this site! The information is PRICELESS! 🙂 Outstanding job!

    Can you tell me where I might find a wheel (not the caster) for a Spirit 500? I’ve been looking on the computer so long, my vision is blurry 🙂

    THANKS!!!!!
    Corrine

    Reply
